Saab 9-3. 9.5 I 2.2 TiD, Opel Signum, Vectra C 2.2L DTI Engine Y22DTR GT1849V Turbo 717626 705204-0002
Specifiions:
| Part Number | 705204-5002S |
| Previous Version | 705204-0001, 705204-0002. 717626-0001, 705204-1, 705204-2. 717626-1 |
| OE Number | 860055, 24443096, 860051, 24445062, 9202611, 24418170 |
| Year | 2001-05 |
| Description | Saab 9-3. 9.5 I 2.2 TiD, Opel Signum, Vectra C |
| CHRA | 703890-0029 (703890-5029S) |
| Turbo Model | GT1849V, GTA1849V |
| Engine | Y2DTR, Y22DTR, X22DTHY2DTR |
| Engine Manufacturer | Saab |
| Displacement | 2.2L, 2172 ccm, 4 Cylinders |
| KW | 92/125 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 329� |
| Angle β (turbine housing) | 300� |
| Bearing Housing | 722282-0037 NEW IN STOCK |
| Turbine Wheel | 704580-0001/704580-0003/704580-0005/704580-0016 NEW IN STOCK |
| Comp. Wheel | 436132-0003/703925-0003/706164-0003 NEW IN STOCK |
| Back plate | 700593-0006/703682-0045 NEW IN STOCK |
| Heat shield Number | 433112-0001 NEW IN STOCK |
| Nozzle Ring Assembly | 704013-0011/704013-0013 NEW IN STOCK |
| Repair Kit | 732252-0001 NEW IN STOCK |
| Nozzle Ring Assembly | 704013-0011 NEW IN STOCK |
| Settings Waste gate (pressure) | 0.197-0.203 bar |
| Settings Waste gate (lift rod) | 0.5-4.0 mm |
| Gasket (turbine inlet) | 210505 |
| Gasket oil inlet | 210511 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
Interchangeable with 717626-5001S
Appliions
2002-04 Opel Signum 2.2L DTI Engine Y22DT
2002-04 Opel Vectra C 2.2L DTI Engine Y22DTR
2000-05 Saab 9-3 I 2.2L DTI Engine Y2DTR
2000-05 Saab 9-5 I 2.2L DTI Engine Y22DTR

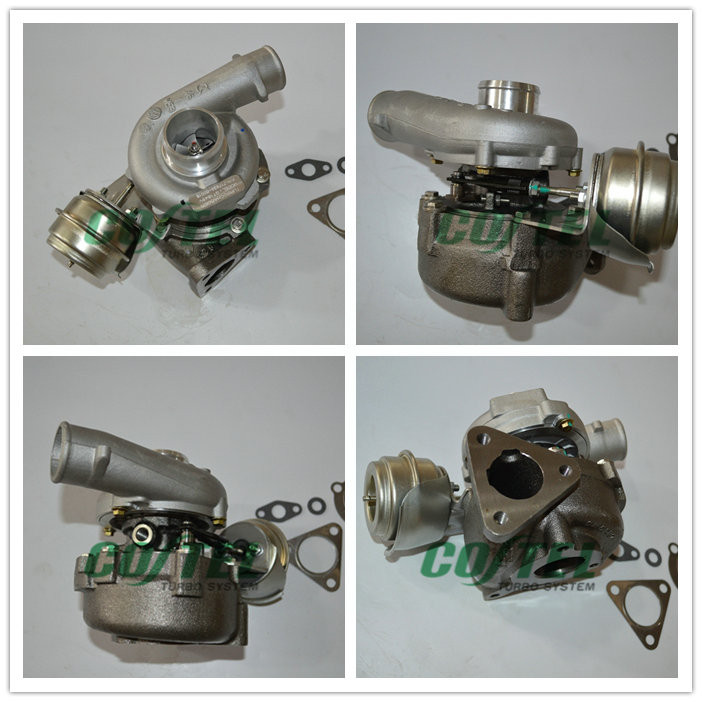

Pictures:
Contact:
Email/Skype:costelturbo@outlook.com
Shipping:
Depending on various circumstances, three different delivery methods have been taken:
1 By sea. 2 By air cargo. 3 By express service.
Delivery term
Our extensive stock of turbochargers allows us to offer 3-7 working day delivery service ensuring that you and your customer wait no longer than is necessary.
50-150 pcs--15-20 days, 150-300 pcs--25 days, over 300 pcs -- 30 days.
COSTEL Complete Turbo
A.our products have 12 months warranty.
B.Product are manufactured to OE standards of quality
C.All wheels are processed on the Schenck automatic balancing centre with air bearings to achieve lowest residual balance.
D.Cartridges are assemblied by automatic line, and are balanced with Turbo Technics VSR or Schenck .
E.All VNT turbochargers are tested on the G3 VNT Flow Bench.
F.All turbochargers are supplied with gasket kits.
PRODUCTS coverage
- Garrett(GT12,GTC14,GT15-25,GT37,GT42,GT45 etc),
- KKK (K03,K04,K06,K16,K27,K31,KP35,KP39,BV43,BV50,R2S etc),
- Schwitzer (S1B/S100,S2B/S200,S300,S400 etc),
- MHI (TD02,TF035,TD04,TD05,TD06 ,TD07,TD08 etc),
- Holset(HX30,HX35/HE341,HX40/HE431V,HX55/HE551,HT60,HX80 etc),
- IHI (RHF/RHB3,RHF/RHB4,RHF5/RHB5,RHG6,RHG7,RHG8 ,RHG9 etc),
- Toyota (CT9,CT10,CT12,CT16V,CT20,CT26 etc).
